Screw Compressor APS 7.5 IVR X 10 bar 7.5 hp/5.5 kW 170-760 l/min
Épuisé

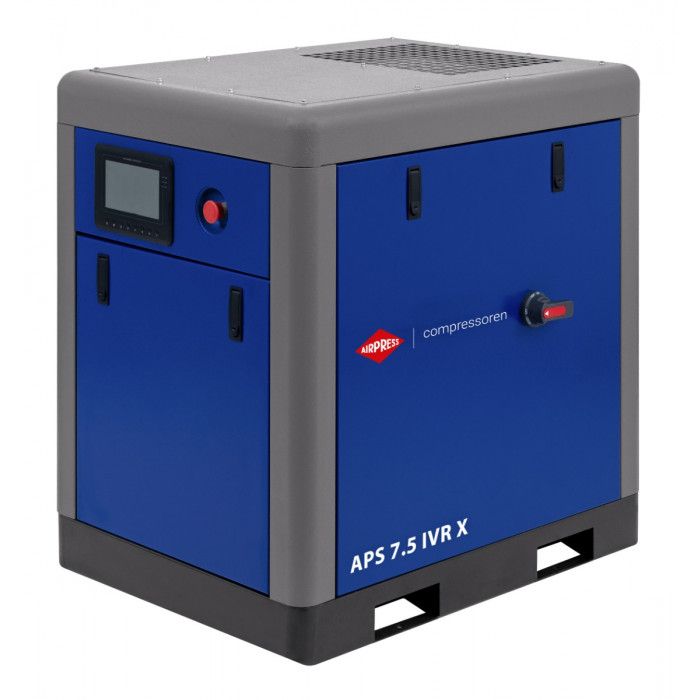

The APS 7.5-IVR X compressor from Airpress is unique in several ways. The screw compressor has all the latest technologies including a "Permanent Magnet motor", which ensures optimum energy saving. Together with the wifi module and the well-arranged controller, the compressor can be adjusted for maximum efficiency!
The APS 7.5-IVR X can be purchased in our webshop, but if you would like advice or a suitable offer for a complete installation, you can also contact us, info@airpress.nl or +32 (0) 3 - 820 99 90.
- Délai de livraison : 2 à 5 jours ouvrés
- Livraison gratuite à partir de 150 € HT !
- Livraison partout en France
- Commandez-vous en Belgique ? Allez sur fr.Airpress.be !
- 98 % de nos clients sont satisfaits de leur choix.
Détails du produit
| SKU | 369407-IVR |
|---|---|
| EAN 13 | 8712418372342 |
| Length (mm) | 910 |
| Width (mm) | 700 |
| Height (mm) | 925 |
| Weight (netto) (kg) | 200,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE4 |
| Motor type | PM |
| Drive | Direct driven 1:1 |
| Control panel | MAM-6080 |
| Available languages | English, Dutch, Polish, German |
| Dryer | No |
| Air Receiver | Non |
| Galvanized tank | Non |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery at 8 bar (l/min) | 760 |
| Free air delivery at 10 bar (l/min) | 690 |
| Minimum free air delivery (l/min) | 170 |
| Minimum free air delivery (m3/h) | 10.2 |
|---|---|
| Maximum free air delivery (l/min) | 760 |
| Maximum free air delivery (m3/h) | 45.6 |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Plug type | EU |
| Cooling air volume (m3/h) | 2300 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | Non |
| Oil capacity (l) | 6 |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| Variable speed (IVR) | Oui |
| Minimum rpm 10 bar (rpm/Hz) | 1100 |
| Maximum rpm 10 bar (rpm/Hz) | 1960 |
| Minimum energy consumption 10 bar (kW/m3/h) | 3.1 |
| Maximum energy consumption 10 bar (kW/m3/h) | 6.5 |
Produit recommandé
Description
he Airpress APS 7.5-IVR X is a unique compressor with great qualities and characteristics. This 5.5 kW, directly driven screw compressor has the latest technologies. For example, this machine has a Permanent Magnet motor for optimum energy saving (up to 8% higher than a standard Asynchronous motor) and the compressor has a wifi module to be able to monitor and adjust the compressor remotely. All parameters can be read and adjusted in the menu of the very comprehensive but well-arranged controller which is equipped with a full color touchscreen. With this, every APS7.5 X IVR can be adjusted per situation for maximum efficiency. All components are easily accessible when the panels are removed during maintenance. The machine has been carefully designed so that fewer parts are maintenance-sensitive and the screw compressor is therefore many times more durable than other brands. The service interval of 3,000 hours also ensures lower maintenance costs.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
