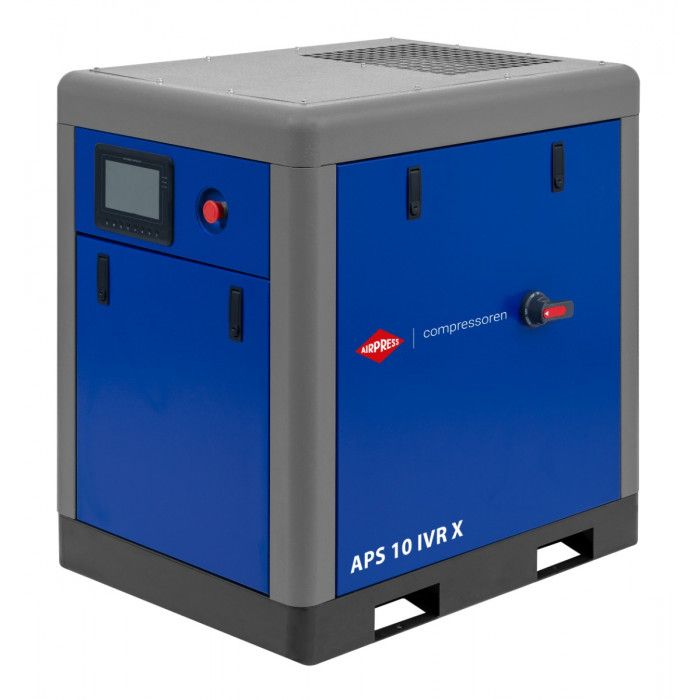

Screw Compressor APS 10 IVR X 10 bar 10 hp/7.5 kW 270-1020 l/min
Épuisé
- Délai de livraison : 2 à 5 jours ouvrés
- Livraison gratuite à partir de 150 € HT !
- Livraison partout en France
- Commandez-vous en Belgique ? Allez sur fr.Airpress.be !
- 98 % de nos clients sont satisfaits de leur choix.
Détails du produit
| SKU | 369410-IVR |
|---|---|
| EAN 13 | 8712418372298 |
| Length (mm) | 910 |
| Width (mm) | 700 |
| Height (mm) | 925 |
| Weight (netto) (kg) | 200,00 |
| Workload (labor/rest %) | 100/0 |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE4 |
| Motor type | PM |
| Drive | Direct driven 1:1 |
| Control panel | MAM-6080 |
| Available languages | English, Dutch, Polish, German |
| Dryer | No |
| Air Receiver | Non |
| Galvanized tank | Non |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 6 |
| Free air delivery at 8 bar (l/min) | 1020 |
| Free air delivery at 10 bar (l/min) | 950 |
| Minimum free air delivery (l/min) | 270 |
| Minimum free air delivery (m3/h) | 16.2 |
|---|---|
| Maximum free air delivery (l/min) | 1020 |
| Maximum free air delivery (m3/h) | 61.2 |
| Noise level dB (A) (0 m) | 63 |
| Noise level dB(A) (4 m) | 43 |
| Plug type | EU |
| Cooling air volume (m3/h) | 2300 |
| Main air connection (") | 3/4 |
| Minimum ambient temperature (°C) | 10 |
| Maximum ambient temperature (°C) | 45 |
| Oilfree | Non |
| Oil capacity (l) | 6 |
| Stages | 1 |
| Start | Inverter |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| Variable speed (IVR) | Oui |
| Minimum rpm 10 bar (rpm/Hz) | 1220 |
| Maximum rpm 10 bar (rpm/Hz) | 2700 |
| Minimum energy consumption 10 bar (kW/m3/h) | 9.2 |
| Maximum energy consumption 10 bar (kW/m3/h) | 12.1 |
Produit recommandé
Description
A compressor with great qualities and characteristics. This 7.5 kW, directly driven screw compressor has the latest technologies. For example, this machine has a Permanent Magnet motor for optimum energy saving (up to 8% higher than a standard Asynchronous motor) and the compressor has a wifi module to be able to monitor and adjust the compressor remotely. The yield is a maximum of 1020 liters per minute. All parameters can be read and adjusted in the menu of the very comprehensive but well-arranged controller which is equipped with a full color touchscreen. With this, every APS 10 X IVR can be adjusted per situation for maximum efficiency. All components are easily accessible when the panels are removed during maintenance. The machine has been carefully designed so that fewer parts are maintenance-sensitive. The service interval of 3,000 hours also ensures lower maintenance costs. This machine is very suitable for small businesses to medium-sized businesses such as garage companies.
X series Screw compressors
By continuously investing in the development of our products, the Airpress Group presents a new series of screw compressors. The screw compressors are available from 5.5 kW to 37 kW. The APS X series is available in two versions: controlled at a fixed speed or speed. Machines of 15 kW are also available with a two-stage screw block. These versions have an increased performance with the same power consumption as a single-stage version. Depending on demand, these machines are available as a separate unit, mounted on a tank or mounted on a tank and equipped with a compressed air dryer. Compressors of the X series are characterized by a new generation of screw blocks. The direct drive avoids losses due to the transmission. Reliable and efficient, easy-to-use screw compressors ensure trouble-free operation at minimal costs. Equipped with a modern control panel, you can constantly monitor the screw compressor and change parameters if necessary.
