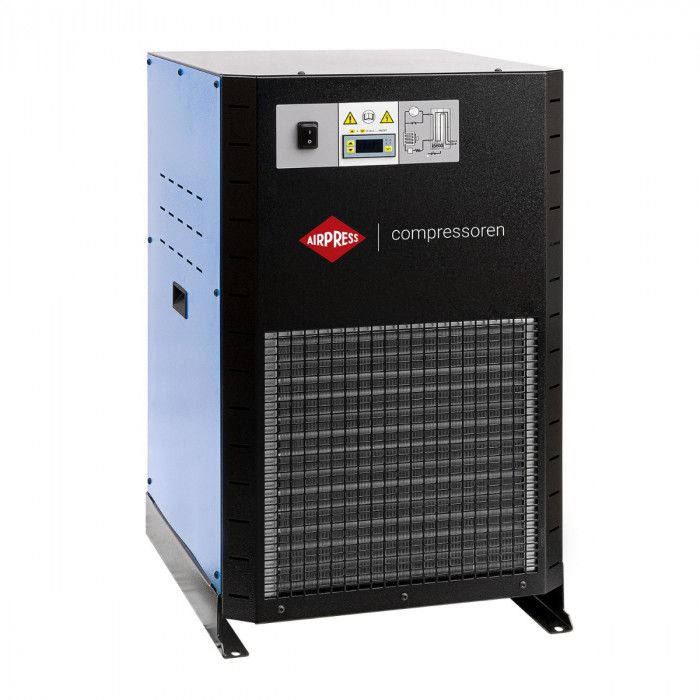

Compressed air dryer RDO 1500 2 1/2" 25000 l/min "Timer" automatic condensation drain
13 557,53 CHF
TTC:
13 557,53 CHF
TTC:
TTC:
Épuisé
SKU
3901500
- Délai de livraison : 2 à 5 jours ouvrés
- Livraison gratuite à partir de 150 € HT !
- Livraison partout en France
- Commandez-vous en Belgique ? Allez sur fr.Airpress.be !
- 98 % de nos clients sont satisfaits de leur choix.
Détails du produit
| SKU | 3901500 |
|---|---|
| EAN 13 | 8712418409796 |
| Weight (netto) (kg) | 290 kg |
| Length (mm) | 662 mm6,62 dm |
| Width (mm) | 856 mm8,56 dm |
| Height (mm) | 1 534 mm1,534 m |
| Type | RDO |
| Control panel | Digital |
| Type condensation drain | Automatic "Zero-loss" |
| Air flow at 7 bar (l/min) | 25000 |
| Air flow at 7 bar (m3/h) | 1 500 m³/h25 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
| Connection type | Female |
| Air connection (") | 2 1/2 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
|---|---|
| Power (kW) | 2.7 |
| IP classification | IP 65 |
| Cooling air volume (m3/h) | 4 600 m³/h1,278 kL/s |
| Refrigerant | R134a |
| Refrigerant weight (kg) | 5 |
| Maximum pressure (bar) | 16 |
| Pressure dew points (°C) | 3 |
| Max. inlet air temperature (°C) | 55 °C |
| Minimum ambient temperature (°C) | 1 |
| Maximum ambient temperature (°C) | 45 |
| Heat rejection (kW) | 12.2 |
| Noise level dB (A) (0 m) | >65 |
Documents
Fiche produit
Manual (before 2023) FR RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual EN (after 2023) RDO 2-/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900/2600
Manual (before 2023) DE RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
Manual (before 2023) NL RDO 20/35/50/75/100/140/180/235/300/380/480/600/750/950/1150/1300/1500/1900
manual_RDO_DE_BEFORE_2023.pdf
manual_RDO_NL_BEFORE_2023.pdf
RDO_USER_MANUAL 2024_EN_MA - WEB.pdf
manual_RDO_PL.pdf
RDO_USER_MANUAL_FR_12092023.pdf
